DSMapStudio Won't Open: Troubleshooting Guide

"Won't open" is two completely different failures wearing the same description, and picking the right one is 90% of the fix. Either the process never starts — you double-click DSMapStudio.exe, nothing happens, and DSMapStudio never appears in Task Manager — or it starts and dies, flashing a window or a loading state before closing, usually leaving a log behind. The first is a missing native runtime. The second is something the log will name outright. Don't apply the second's fixes to the first; they won't touch it.

First, decide which failure you have

Double-click DSMapStudio.exe and watch Task Manager (Ctrl+Shift+Esc). No DSMapStudio process ever appears, or it flickers in for a split second and vanishes with no log file: that's the no-window case. A process starts, a window or loading screen shows, then it closes (often dropping a log file in the folder): that's the crash case.

One gate before either: confirm DSMapStudio.exe actually sits in the extracted folder next to its .dll files. If you instead see a src folder, a .sln file, and .cs files, you extracted the source code, not the program — fix that at no .exe file found before going further.

Nothing happens at all (no window)

DSMapStudio is a .NET 7 app with native (C++/Vulkan) dependencies, and those load before any window is drawn. When one is missing the process aborts so early there's no UI and often no managed error — exactly the "double-click, nothing happens" symptom. In order of how often it's the cause:

• Missing Visual C++ x64 Redistributable. It needs the Microsoft Visual C++ 2015–2022 Redistributable (x64) — the x86 build does nothing for it. This is the single most common no-window cause. Install vc_redist.x64.exe (aka.ms/vs/17/release/vc_redist.x64.exe) and reboot.
• Missing .NET 7 Desktop Runtime. Specifically the Desktop Runtime (x64) — not ASP.NET, not the plain runtime, not the SDK. The plain .NET runtime is the one people install by accident and it won't launch a WPF/desktop app.
• Extracted into a protected folder. Inside C:\Program Files or Program Files (x86), Windows blocks the config/log writes it does on startup and it can die before drawing UI. Move the whole folder to something writable like C:\Modding\DSMapStudio\.

Install both runtimes (it needs both, and missing either produces the same silent failure), reboot, retry.

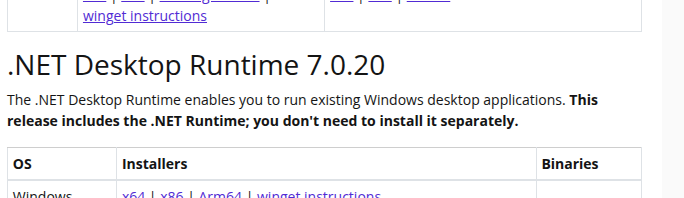

Install the .NET Desktop Runtime specifically — not ASP.NET Core, not the plain .NET Runtime, not the SDK. Full setup: installation guide.

It opens, then crashes

If a window or loading screen appears and then dies, the program got far enough to record why. Usual suspects:

• Antivirus quarantined a DLL. DSMapStudio bundles libraries for reading and injecting game files; Defender and others sometimes flag them. A launch-then-instant-death is the signature. Check quarantine, restore the file, and exclude the whole DSMapStudio folder.
• Stale config from an older build. A config left by a previous version can crash startup. Delete the tool's local config/settings in the program folder and let it regenerate — your projects live in their own directories and aren't touched.
• Vulkan init failure. If it dies specifically while initializing graphics, the GPU doesn't meet the Map Editor's Vulkan 1.3 bar — see the Map Editor note below.

Read the crash log — it usually names the cause

This is the step people skip and the one that ends the guessing. After a post-launch crash, DSMapStudio writes a log in or beside its program folder; open the newest one and read the last lines, where the exception that killed it lands:

• "missing assembly" / a named .dll → wrong or uninstalled runtime (back to Visual C++ / .NET above).
• A Vulkan or device-creation error → GPU below the Map Editor requirement.
• An access-denied or path error → it can't write where you extracted it (protected folder).

Match that final exception to a row below instead of trying fixes at random.

Diagnostic table

When only the Map Editor won't render

A frequent variant that isn't a startup failure at all: DSMapStudio opens, Param and Text editors work, but the 3D Map Editor is black or crashes. That's the GPU. The viewport needs Vulkan 1.3 (NVIDIA Maxwell/900 series or AMD Polaris/400 series and newer); Intel integrated graphics can't drive it. Use the Low Requirements executable from the same zip for params and text, and see Intel GPU: no Vulkan support.

Once it launches clean, point it at your game with the first-project guide. If it opens but throws "Unknown DCX format" when loading a game file, that's patch compatibility, not startup — see fixing Unknown DCX format.
